24KV 630A UNSCREENED SEPARABLE CONNECTOR CJ20(10)-630 , CJK20(10)-630

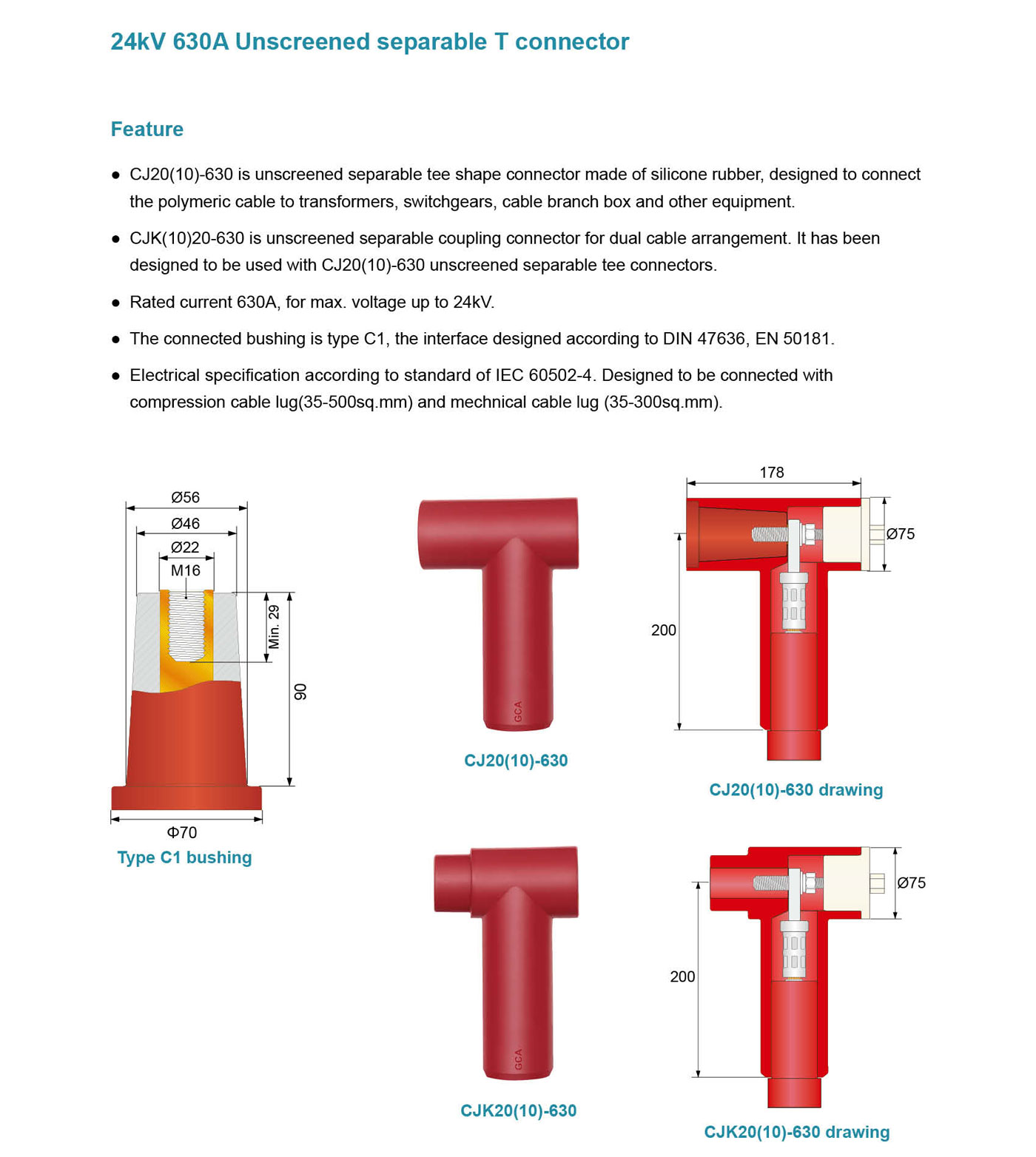

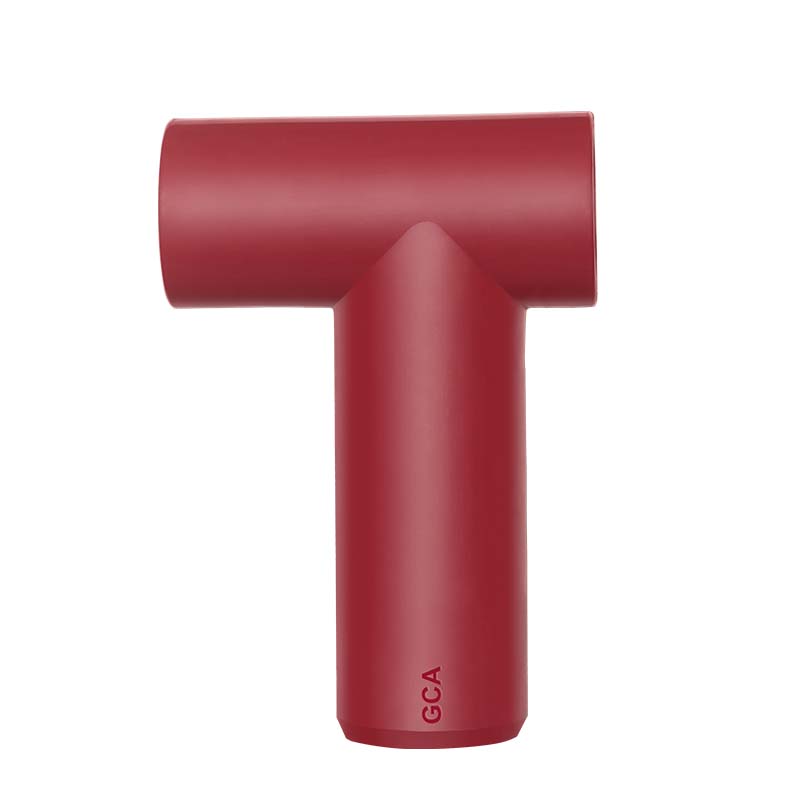

24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
24kV 630A Unscreened separable connector CJ20(10)-630 , CJK20(10)-630
Max.voltage (Um):
Cable cross section(sq.mm):
Cable core:
Metal screen:
Metal armour:
Conductor:
Cable lug:
Quantity:
Remarks:
Add to list
Contact us

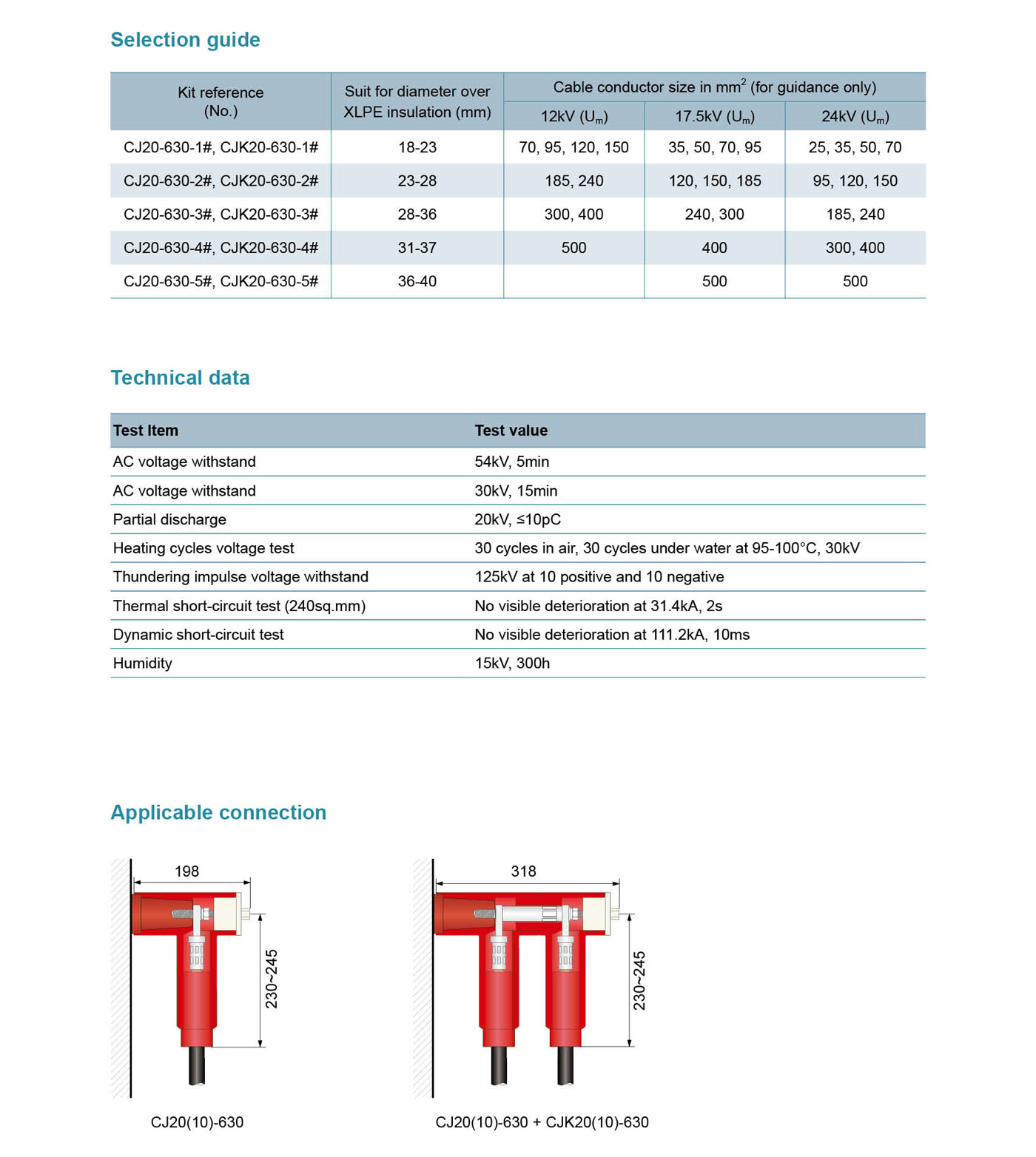

Specification Test report
Specification

Test report

Reference Cases
Unscreened Separable Connector Unscreened Separable Connector
CJ Series Unscreened Separable Connector applications for incoming and outgoing wires of outer cone bushing
